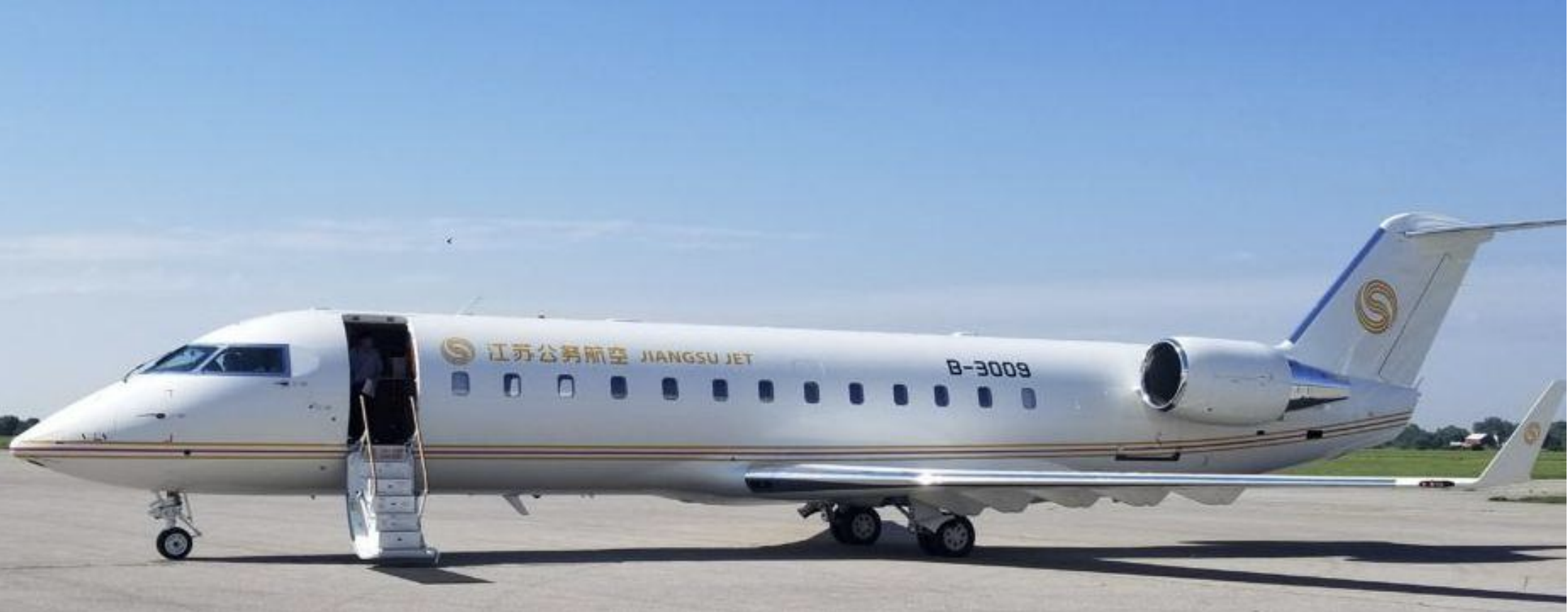

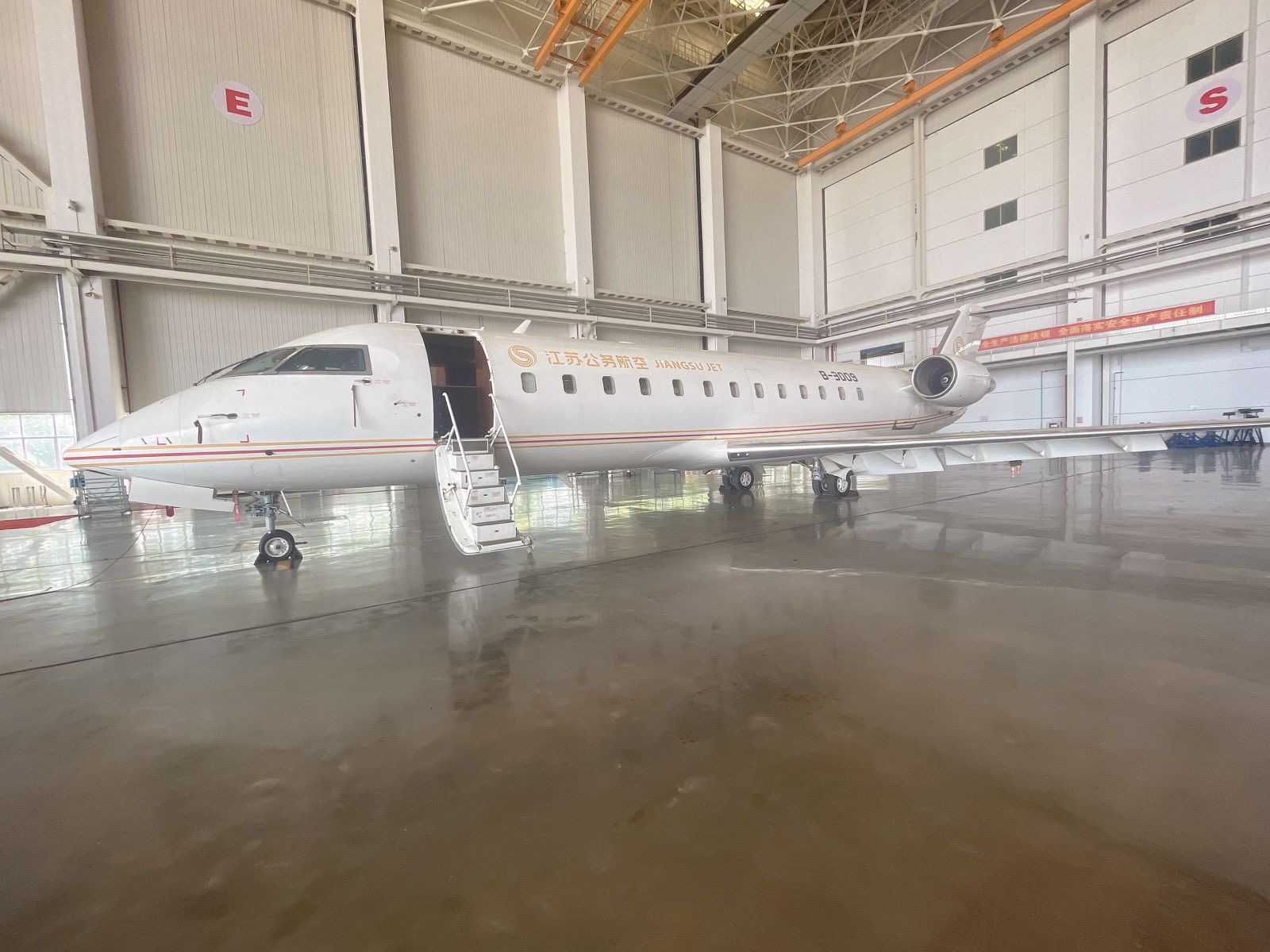

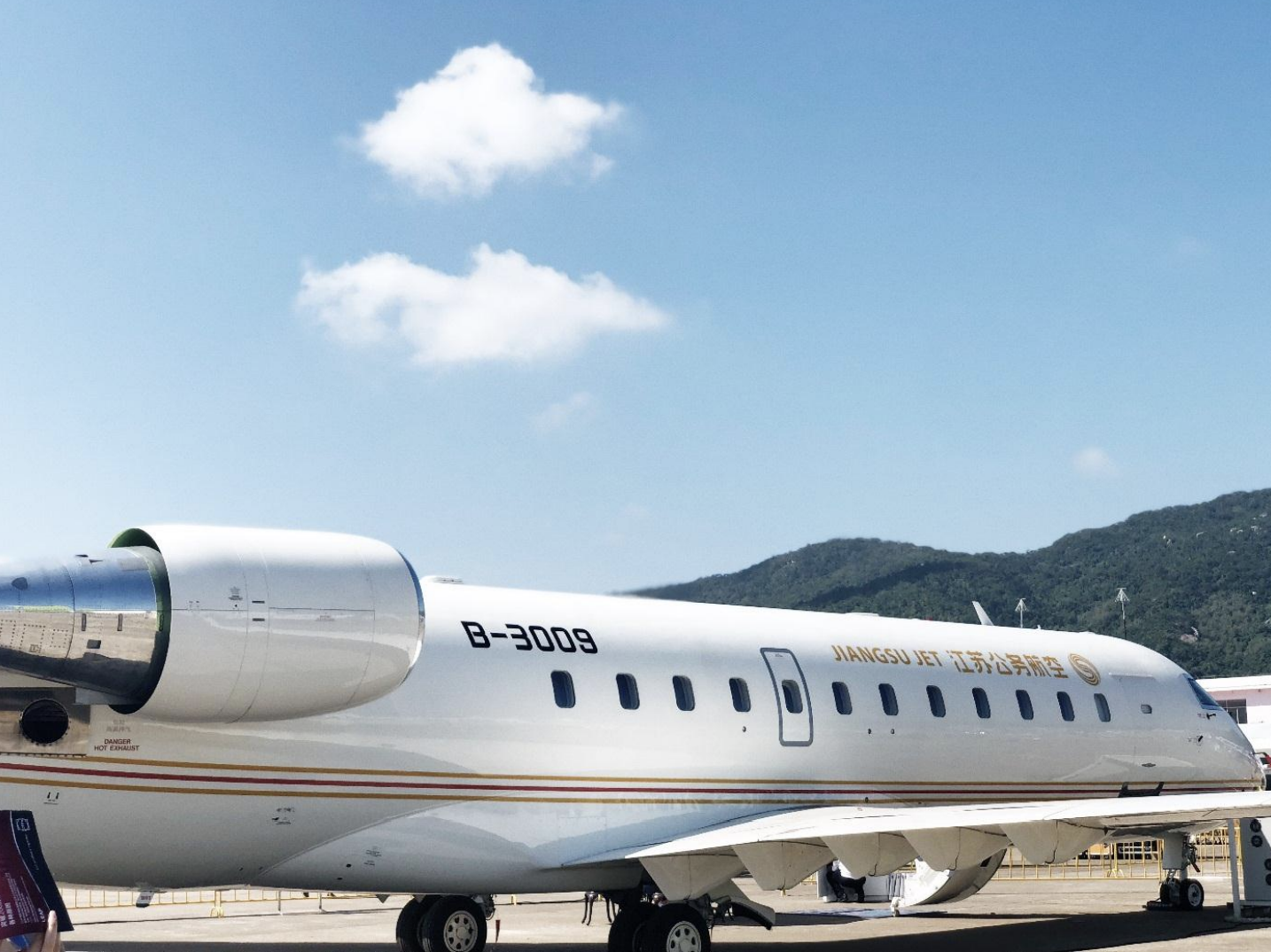

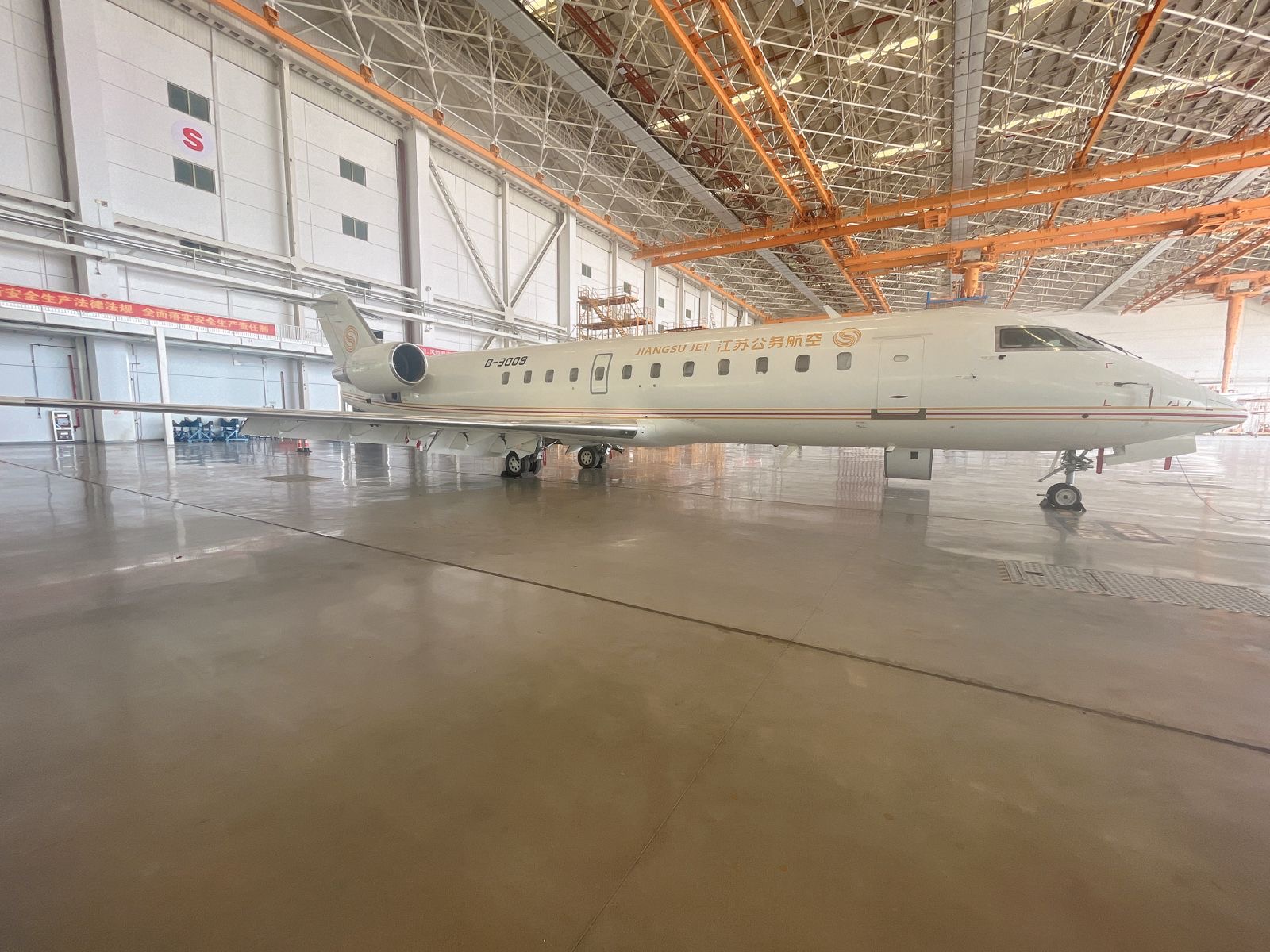

The CRJ-200 (CL600-2B19), serial number 7522, registration B-3009, is a mid-sized business jet offering exceptional performance and efficiency. The fuselage measures 26.77 meters in length with a wingspan of 21.23 meters and a height of 6.18 meters. Maximum takeoff weight is 24,041 kg, with a maximum landing weight of 21,319 kg and maximum oil-free weight of 19,958 kg. The aircraft can reach a maximum cruising speed of 992.31 km/h and a flight ceiling of 12,496 meters, with a maximum range of 5,204 km. The cabin features a 15-seat VIP configuration, accommodating two pilots, two cabin crew members and providing luxurious comfort for executive travel.

Power is supplied by two General Electric CF34-3B1 engines, each producing 9,220 lb of thrust. The left engine (S/N GE-E-872813) has 36,898 TSN and 29,778 CSN, while the right engine (S/N GE-E-872834) has 36,030 TSN and 29,718 CSN. The auxiliary power unit (Honeywell GTCP36-150, S/N P-759) has 15,120 TSN and 37,044 CSN. Both engines and the APU are operated without active maintenance programs, and fuel consumption is 1,200 kg/hr per engine and 120 kg/hr for the APU. With auxiliary fuel tanks installed, maximum fuel capacity is 8,291 kg.

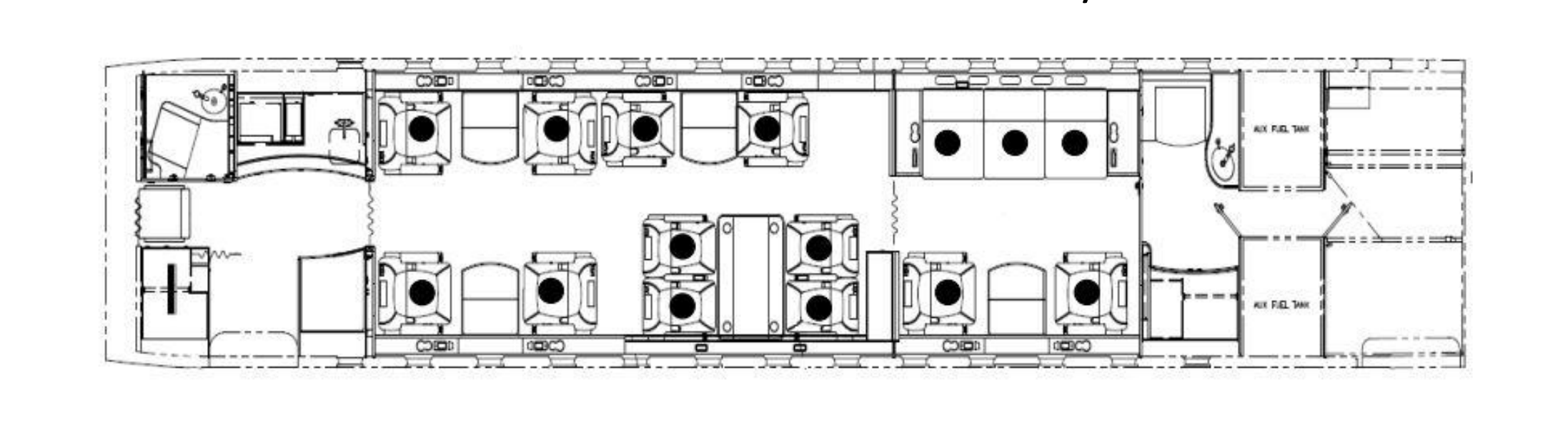

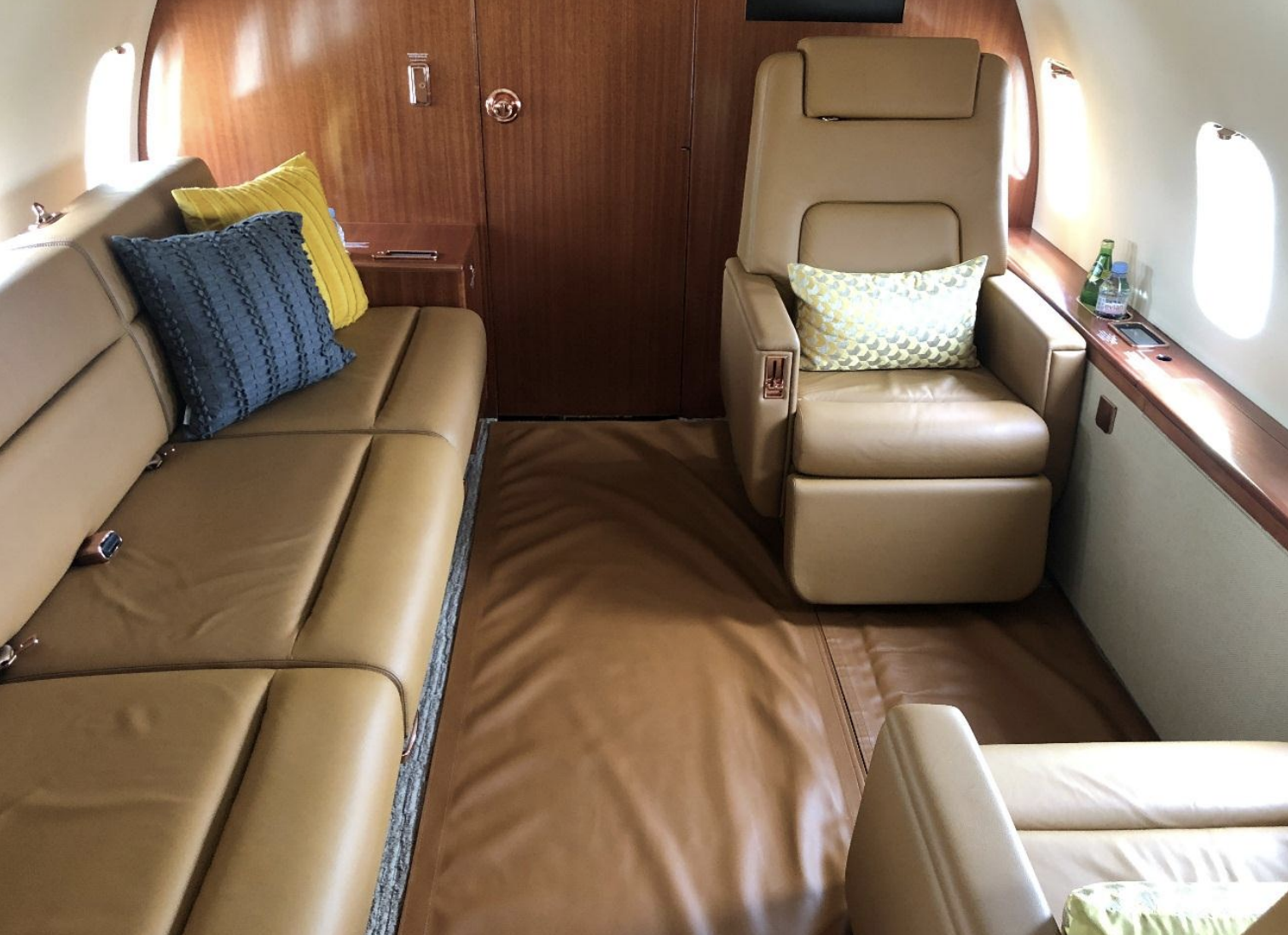

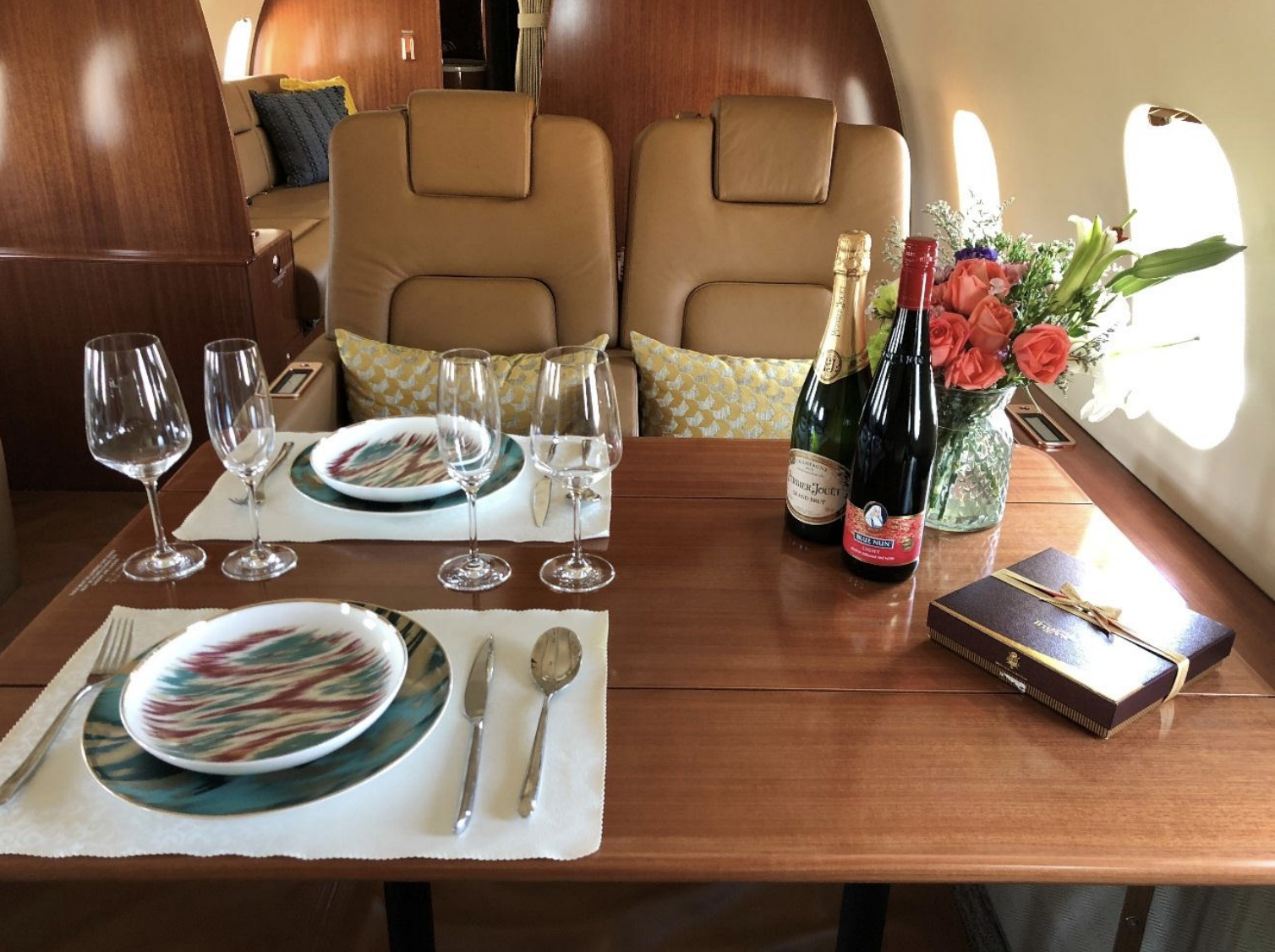

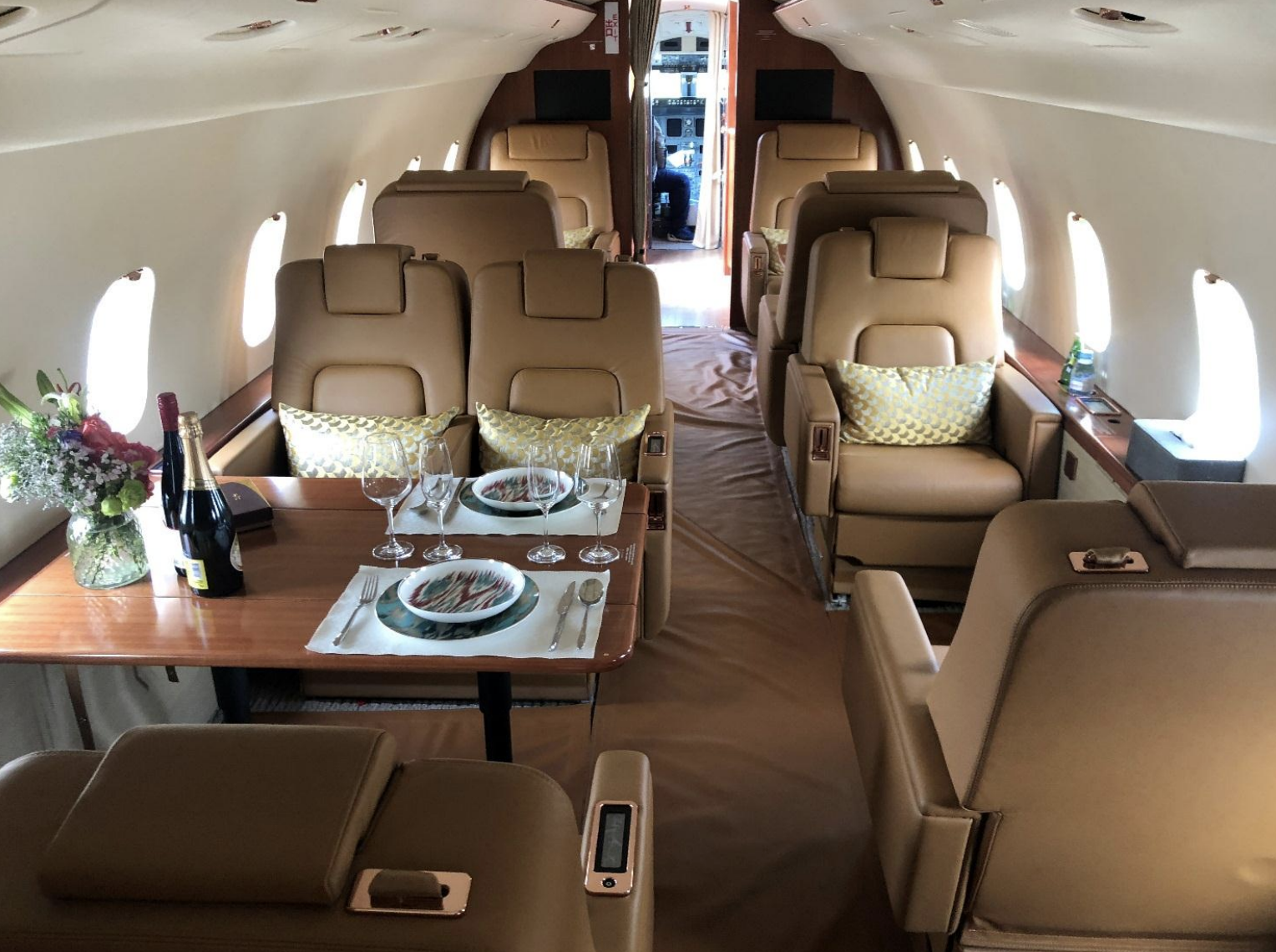

The aircraft’s landing gear system is fully maintained, with the nose gear (P/N 16050-117, S/N DCL526/01) and main gears (L/H: P/N 17002-115, S/N DCL1115/05; R/H: P/N 17002-116, S/N DCL1112/05) recently restored. The cabin interior was converted into a 15-VIP-seat layout, and the exterior fuselage received a full repaint in 2022, preserving its modern appearance. Door and cargo specifications include a boarding gate measuring 36 by 70 inches, service door 24 by 48 inches, wing emergency door 20 by 38 inches, and a cargo door 43 by 33 inches with a load limit of 635 kg.

Advanced avionics include Collins ADF-462, RTU-4000, EFIS EFD-4076, FMS CDU-4100, GPS-4000S, Honeywell Mark V TAWS, TCAS 7.1, Collins TDR-94D transponder, and RTA-844 weather radar, along with Thales integrated electronic standby instruments and cabin WiFi CNX-900. Regular maintenance has been performed, including 24MO and 48MO works, with additional 96MO, 36MO, and engine replacement works planned for 2024. This CRJ-200 combines reliable performance, VIP comfort, and excellent operational readiness.

Engines

Left Engine – CF34-3B1, S/N GE-E-872813

• FAN DISK: P/N 6078T57G05, S/N GEE1GH1M, Installed: -, Cycle Limit: 24,300, Cycles Remaining to Next Shop Visit: 17,930
• FAN FRONT SHAFT: P/N 6078T51P02, S/N GATHRJG8, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987
• FAN DRIVE SHAFT: P/N 6036T78P02, S/N FBKRM464, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987
• COMPRESSOR STAGE NO.1 BLISK: P/N 5087T84P03, S/N GLHTMRM4, Installed: -, Cycle Limit: 20,000, Cycles Remaining to Next Shop Visit: 14,808
• COMPRESSOR FWD SHAFT: P/N 5037T01P04, S/N GATD0R2Y, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 495
• COMPRESSOR STAGE NO.2 DISC: P/N 6036T91P02, S/N GATHRML0, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 10,987
• COMPRESSOR SPOOL STG. NO.3-8: P/N 6078T56P05, S/N GATHLNKG, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 7,226
• COMPRESSOR SPOOL STG. NO.10-14: P/N 5087T46P02, S/N GATHPN7J, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987
• COMPRESSOR DISCHARGE SEAL: P/N 4019T38P01, S/N PAMAP502, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 495
• COMPRESSOR REAR SHAFT: P/N 6087T03P03, S/N GEE1GGKG, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987
• COMPRESSOR STAGE NO.9 DISC: P/N 6087T01P03, S/N NCE443HM, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987
• HPT BALANCE PISTON SEAL: P/N 5079T63P02, S/N NCE933EH, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 4,389
• HPT ROTOR SHAFT: P/N 5079T62P02, S/N GEE148RW, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 171
• HPT STG NO.1 FWD COOLING PLATE: P/N 5079T65P06, S/N NCE4613L, Installed: -, Cycle Limit: 20,000, Cycles Remaining to Next Shop Visit: 495
• HPT STG NO.1 DISK: P/N 5079T52P09, S/N GATHLM55, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 4,389
• HPT STG NO.1 AFT COOLING PLATE: P/N 5123T02P01, S/N BSLN5547, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 4,389
• HPT STG NO.2 AFT COOLING PLATE: P/N 5079T56P02, S/N NCE4709L, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 495
• HPT STG NO.2 DISK: P/N 5079T73P02, S/N GATHL8A2, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 4,389
• HPT STG NO.2 FWD COOLING PLATE: P/N 5079T55P04, S/N NCE4680L, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 171
• HPT OUTER TORQUE COUPLING: P/N 5079T64P05, S/N NCE4100L, Installed: -, Cycle Limit: 20,000, Cycles Remaining to Next Shop Visit: 495
• LPT AFT SHAFT: P/N 6030T72P02, S/N NCE563HB, Installed: -, Cycle Limit: 18,000, Cycles Remaining to Next Shop Visit: 13,280
• LPT STG NO.3 DISK: P/N 6078T91P02, S/N XAEJ1879, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987
• LPT STG NO.3/4 SEAL: P/N 5023T59P02, S/N WES24292, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 7,226
• LPT STG NO.4 DISK: P/N 6078T02P04, S/N XAEJ0339, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 7,226
• LPT STG NO.4/5 SEAL: P/N 5023T67P02, S/N WES42671, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987
• LPT STG NO.5 DISK: P/N 6078T92P02, S/N GATHFDE4, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 2,763
• LPT STG NO.5/6 SEAL: P/N 5023T64P04, S/N WES63206, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987
• LPT STG NO.6 DISK: P/N 6078T89P03, S/N GATHF98A, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 2,763
• LPT TURBINE DRIVE CONE: P/N 5023T40P03, S/N FDU6991E, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 10,987

Right Engine – CF34-3B1, S/N GE-E-872834

• FAN DISK: P/N 6078T57G05, S/N GEE1GHC4, Installed: -, Cycle Limit: 24,300, Cycles Remaining to Next Shop Visit: 18,523
• FAN FRONT SHAFT: P/N 6078T51P02, S/N GATHTCD1, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 11,426
• FAN DRIVE SHAFT: P/N 6036T78P02, S/N FBKRM724, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 11,426
• HPC STAGE NO.1 BLISK: P/N 5087T84P03, S/N GLHTMWE6, Installed: -, Cycle Limit: 20,000, Cycles Remaining to Next Shop Visit: 15,324
• HPC DISCHARGE SEAL: P/N 4019T38P01, S/N TEJH0948, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 24,223
• HPC FWD SHAFT: P/N 5037T01P04, S/N PAMJK062, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 24,223
• HPC REAR SHAFT: P/N 6087T03P03, S/N GEE1GH6R, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 11,426
• HPC SPOOL STG. NO.3-8: P/N 6078T56P05, S/N GATHKJAA, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 7,585
• HPC STAGE 10-14: P/N 5087T46P02, S/N GATHW0W2, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 11,426
• HPC STAGE 2 DISK: P/N 6036T91P02, S/N GATHTRJC, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 11,426
• HPC STAGE 9 DISC: P/N 6087T01P03, S/N NCE636JB, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 11,426
• HPT BALANCE PISTON SEAL: P/N 5079T63P02, S/N NCE704DY, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 4,806
• HPT OUTER TORQUE COUPLING: P/N 5079T64P05, S/N NCE2580L, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 282
• HPT ROTOR SHAFT: P/N 5079T62P02, S/N GEE1GGAT, Installed: -, Cycle Limit: 20,000, Cycles Remaining to Next Shop Visit: 16,059
• HPT STG 1 DISK: P/N 5079T52P09, S/N GATHLLN0, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 4,806
• HPT STG 2 DISK: P/N 5079T73P02, S/N GATHL3F4, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 4,806
• HPT STG 1 AFT COOLING PLATE: P/N 5123T02P01, S/N BSLN5467, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 4,806
• HPT STG 2 AFT COOLING PLATE: P/N 5079T56P02, S/N NCE778HN, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 24,223
• HPT STG 2 FWD COOLING PLATE: P/N 5079T55P04, S/N NCE828HU, Installed: -, Cycle Limit: 30,000, Cycles Remaining to Next Shop Visit: 16,059
• HPT STG1 FWD COOLING PLATE: P/N 5079T65P06, S/N NCE432HN, Installed: -, Cycle Limit: 20,000, Cycles Remaining to Next Shop Visit: 24,223
• LPT DRIVE CONE: P/N 5023T40P03, S/N XAES6358, Installed: -, Cycle Limit: 18,000, Cycles Remaining to Next Shop Visit: 11,426
• LPT SHAFT: P/N 6030T72P02, S/N NCE081HM, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 13,765
• LPT STG NO.4 DISK: P/N 6078T02P04, S/N XAEJ0155, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 7,585
• LPT STG NO.4/5 SEAL: P/N 5023T67P02, S/N WES43243, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 11,426
• LPT STG NO.5 DISK: P/N 6078T92P02, S/N GATHFE3R, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 2,819
• LPT STG NO.5/6 SEAL: P/N 5023T64P04, S/N WES63115, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 11,426
• LPT STG NO.6 DISK: P/N 6078T89P03, S/N GATHF8NM, Installed: -, Cycle Limit: 15,000, Cycles Remaining to Next Shop Visit: 2,819
